Bare Braided Copper Wire is an essential material used in a wide range of industries. As a manufacturer of high-quality bare braided copper wire, we are committed to supplying our customers with reliable and durable products. Our bare braided copper wire is designed to meet the needs of various industries, and we take pride in producing products that exceed our customers' expectations.

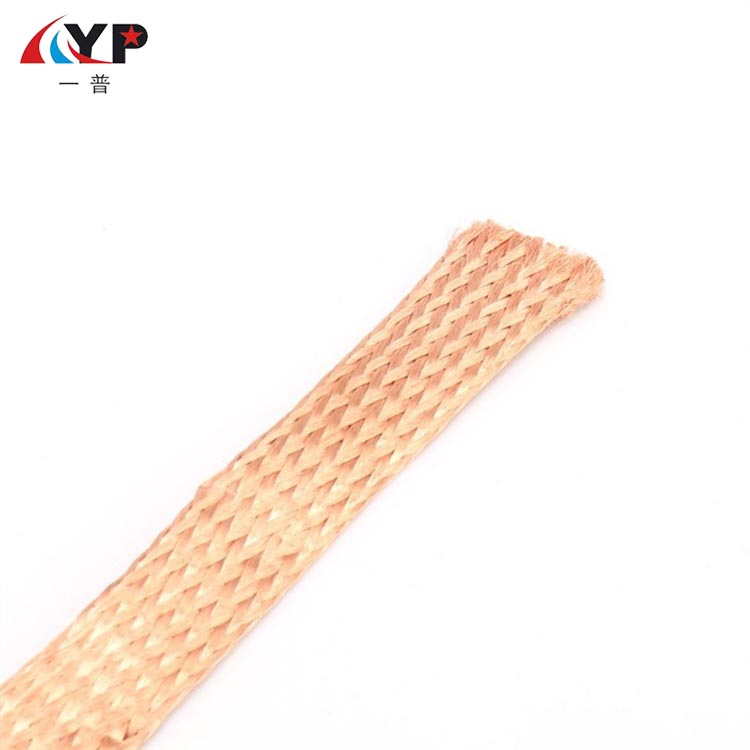

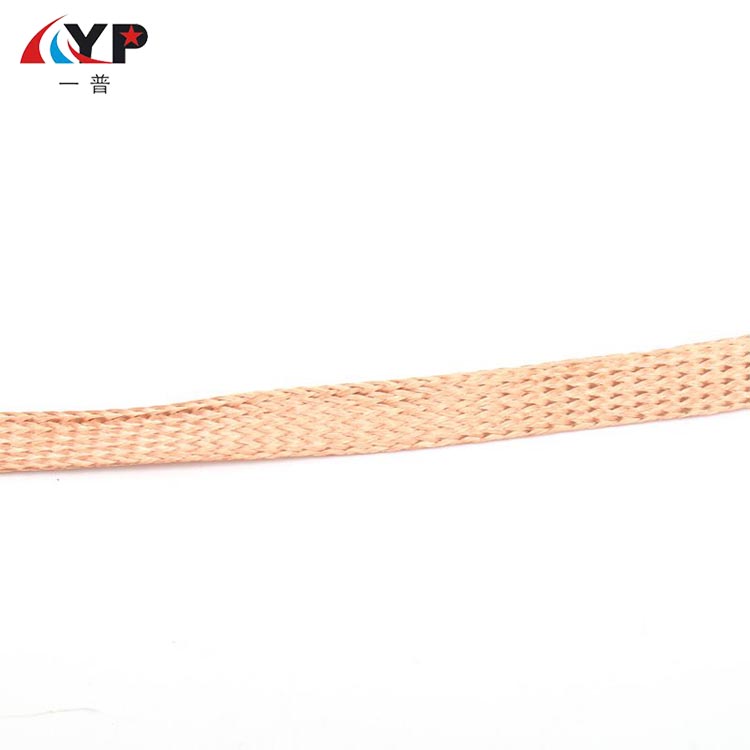

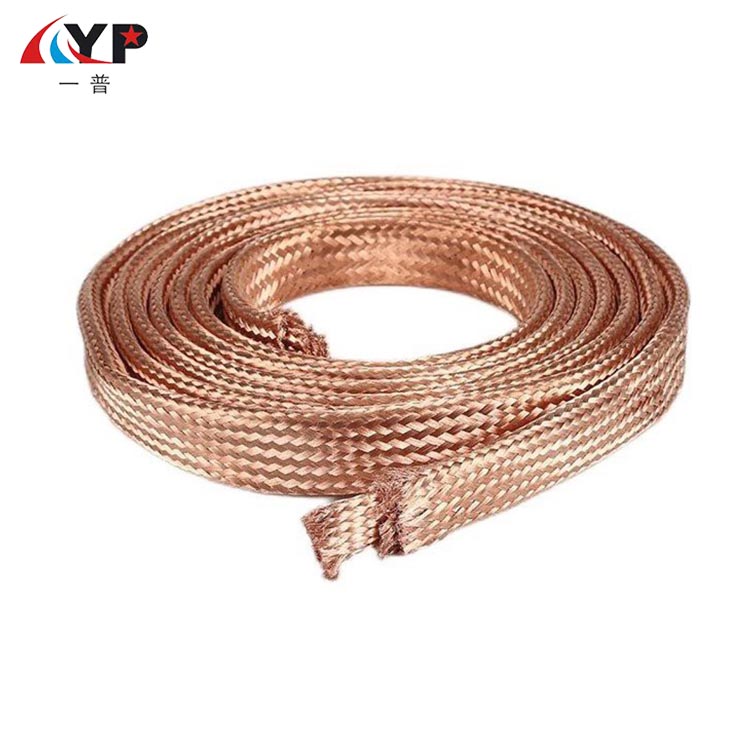

Our bare braided copper wire is made from high-quality copper. This wire is tinned, and the individual strands are braided together to create a flexible and durable product. The bare braided copper wire is made to be abrasion-resistant, making it suitable for use in rugged environments.
One of the most significant advantages of using our bare braided copper wire is its flexibility. This wire is extremely flexible and easy to work with, making it an ideal choice for a wide range of applications. Because the wire is so flexible, it is easy to bend and shape to fit the needed application. This makes it ideal for use in industries such as aerospace, military, and telecommunications.
Another important factor to consider when choosing bare braided copper wire is its durability. Our bare braided copper wire is designed to be durable and long-lasting, even in harsh environments. Its abrasion-resistant properties make it suitable for use in rugged conditions, and it is also resistant to corrosion, making it an ideal choice for outdoor applications.
Our bare braided copper wire is also an excellent conductor of electricity. When compared to other materials such as aluminum or steel, copper has a much higher conductivity. This makes our bare braided copper wire the ideal choice for applications that require high levels of electrical conductivity.
In addition to its electrical properties, our bare braided copper wire is also an excellent thermal conductor. Copper is known for its excellent thermal conductivity, making it an ideal choice for applications that require good heat transfer properties. Copper is also highly resistant to cracking, making it ideal for applications that require high-temperature processing.
One of the most significant advantages of using our bare braided copper wire is its versatility. Our wire can be used in a wide range of applications, including aerospace, military, telecommunications, and many others. It is suitable for use in high-temperature environments and can be used in applications that require high levels of electrical or thermal conductivity.
Another benefit of our bare braided copper wire is its affordability. Compared to other materials such as aluminum or steel, copper is an affordable option. This makes it an ideal choice for applications that require high levels of electrical conductivity but are also cost-sensitive.
Overall, our bare braided copper wire is an essential material used in many industries. Its flexibility, durability, electrical conductivity, thermal conductivity, versatility, and affordability make it an ideal choice for a wide range of applications. If you are looking for a reliable and durable bare braided copper wire supplier, look no further than our company. Contact us today to learn more about our products and services.
We have the production requirements as below lists: beam machines, stranding machines, braiding machines, doubling machines, winding machines, anneal, vacuum pump, wire stretchers, wire-stripping machines, strapping machines, air compressors, drying machines, gasholders, etc.
Manufactured on request in square shape or with rounded edges, either in tinned and bare copper. It is possible to produce 8-fuse constructions from section 0.25 to 20 mm², and 12- fuse constructions from section 6.00 to 60 mm², having strands from 0.05 to 0.20 mm.
Material: annealed Cu-T1, copper content ≥ 99.95%
Finish: bare, tin plating, nickel plating, silver plating
Cross Sectional Area: 0.2mm² - 300mm²
Packing Modes: in rolls, on spools or wooden drums
Price: Our price fluctuates with raw materials and exchange rate. Please leave your contact information and we will give you a new quotation as soon as possible.
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
The number of total single wires |
Single wire diameter |
Wire Number Per Strand |
Wire Structure Strands |
Layers Number |
DC resistance Ω/km ≤ |
Calculated weight Kg/km |
|
1.6 |
1.60 |
816 |
0.05 |
102 |
1 |
8 |
11.30 |
14.24 |
|
2 |
2.01 |
1024 |
0.05 |
128 |
1 |
8 |
9.00 |
17.87 |
|
4 |
4.02 |
2048 |
0.05 |
128 |
2 |
8 |
4.50 |
35.74 |
|
5 |
5.04 |
2568 |
0.05 |
107 |
3 |
8 |
3.59 |
44.81 |
|
8 |
8.04 |
4096 |
0.05 |
128 |
4 |
8 |
2.25 |
71.48 |
|
12 |
12.06 |
6144 |
0.05 |
128 |
6 |
8 |
1.50 |
107.21 |
|
16 |
16.08 |
8192 |
0.05 |
128 |
8 |
8 |
1.13 |
142.95 |
|
20 |
20.10 |
10240 |
0.05 |
128 |
10 |
8 |
0.90 |
178.69 |
|
22 |
22.09 |
11256 |
0.05 |
134 |
7 |
12 |
0.82 |
196.42 |
|
25 |
25.06 |
12768 |
0.05 |
133 |
12 |
8 |
0.72 |
222.80 |
|
28 |
28.02 |
14280 |
0.05 |
119 |
10 |
12 |
0.65 |
249.19 |
|
30 |
30.14 |
15360 |
0.05 |
128 |
10 |
12 |
0.60 |
268.03 |
|
36 |
36.17 |
18432 |
0.05 |
128 |
12 |
12 |
0.50 |
321.64 |
|
50 |
50.11 |
25536 |
0.05 |
133 |
16 |
12 |
0.36 |
445.60 |
|
12 |
12.00 |
3120 |
0.07 |
130 |
3 |
8 |
1.51 |
106.71 |
|
16 |
16.00 |
4160 |
0.07 |
130 |
4 |
8 |
1.13 |
142.28 |
|
18 |
18.00 |
4680 |
0.07 |
117 |
5 |
8 |
1.01 |
160.07 |
|
20 |
20.00 |
5200 |
0.07 |
130 |
5 |
8 |
0.90 |
177.85 |
|
28 |
28.00 |
7280 |
0.07 |
130 |
7 |
8 |
0.65 |
248.99 |
|
4 |
4.02 |
3200 |
0.04 |
200 |
2 |
8 |
4.50 |
35.74 |
|
5 |
5.00 |
3984 |
0.04 |
166 |
3 |
8 |
3.62 |
44.49 |
|
20 |
20.10 |
16000 |
0.04 |
200 |
10 |
8 |
0.90 |
178.69 |
|
25 |
25.02 |
19920 |
0.04 |
166 |
10 |
12 |
0.72 |
222.47 |
|
30 |
30.02 |
23904 |
0.04 |
166 |
12 |
12 |
0.60 |
266.96 |
|
36 |
36.17 |
28800 |
0.04 |
200 |
12 |
12 |
0.50 |
321.64 |
|
40 |
40.03 |
31872 |
0.04 |
166 |
16 |
12 |
0.45 |
355.95 |
The copper braided wire is mainly used for non-horizontal electric movement and as power components in high and low voltage circuit breakers. The conductive copper, the flexible braided wire connectors from our company with complete size, good quality which sold well in our domestic market and foreign market.
